 * Base class for a SocketChannel wrapper used by the endpoint.
 * This way, logic for an SSL socket channel remains the same as for
 * a non SSL, making sure we don't need to code for any exception cases.
 */
public class NioChannel implements ByteChannel, ScatteringByteChannel, GatheringByteChannel {

    protected SocketChannel sc = null;

    /**
     * Reads a sequence of bytes from this channel into the given buffer.
     *
     * @param dst The buffer into which bytes are to be transferred
     * @return The number of bytes read, possibly zero, or <code>-1</code> if
     *         the channel has reached end-of-stream
     * @throws IOException If some other I/O error occurs
     */
    @Override
    public int read(ByteBuffer dst) throws IOException {
        return sc.read(dst);
    }

    /**
     * Writes a sequence of bytes to this channel from the given buffer.
     *
     * @param src The buffer from which bytes are to be retrieved
     * @return The number of bytes written, possibly zero
     * @throws IOException If some other I/O error occurs
     */
    @Override
    public int write(ByteBuffer src) throws IOException {
        checkInterruptStatus();
        if (!src.hasRemaining()) {
            // Nothing left to write
            return 0;
        }
        return sc.write(src);
    }
}

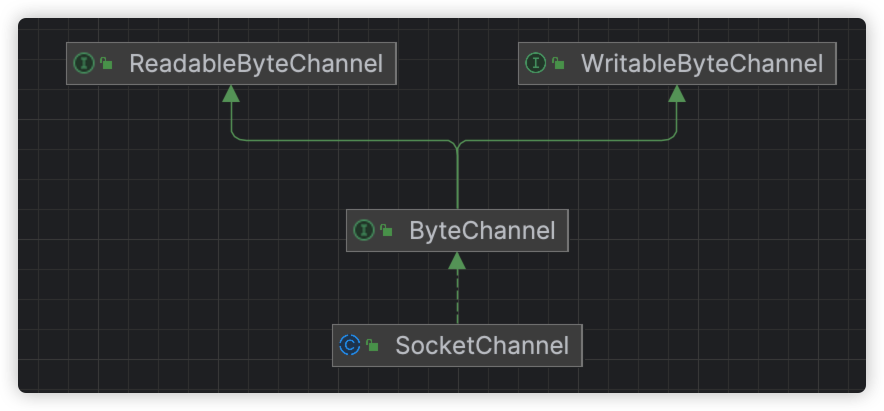

package java.nio.channels;

public interface ReadableByteChannel extends Channel {

    /**
     * Reads a sequence of bytes from this channel into the given buffer.
     *
     * ...생략...
     *
     */
    public int read(ByteBuffer dst) throws IOException;
}

package java.nio.channels;

public interface WritableByteChannel
    extends Channel
{

    /**
     * Writes a sequence of bytes to this channel from the given buffer.
     *
     * ... 생략 ...
     *
     */
    public int write(ByteBuffer src) throws IOException;

}

package org.apache.tomcat.util.net;

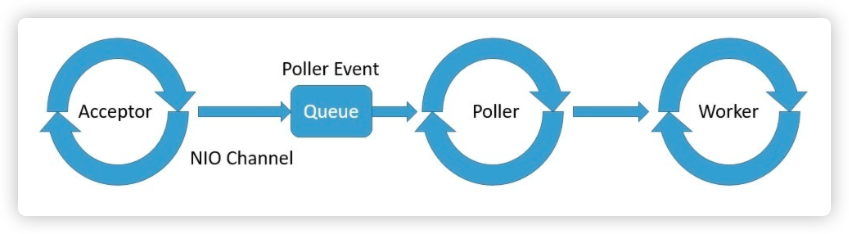

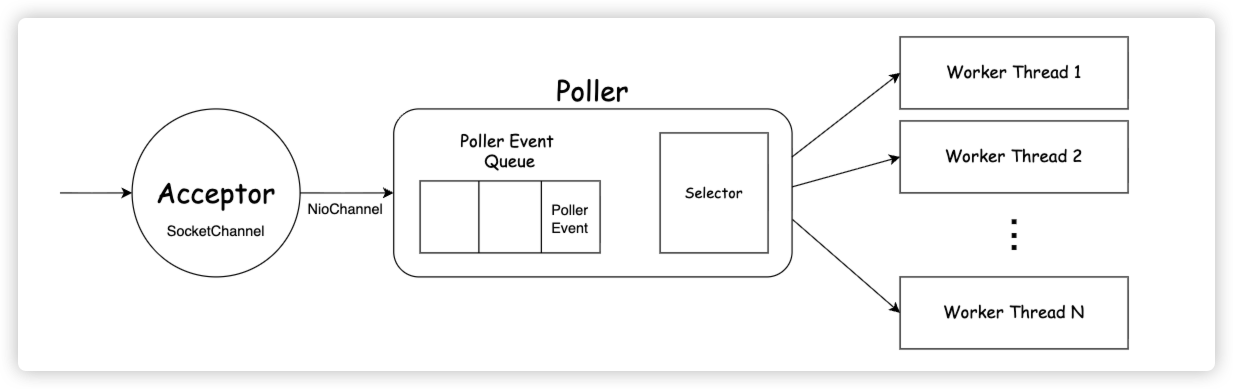

public class Acceptor<U> implements Runnable {
    // ...
    private final AbstractEndpoint<?,U> endpoint;

    @Override
    public void run() {

        int errorDelay = 0;
        long pauseStart = 0;

        try {
            // Loop until we receive a shutdown command
            while (!stopCalled) {
                while (endpoint.isPaused() && !stopCalled) {
                    if (state != AcceptorState.PAUSED) {
                        pauseStart = System.nanoTime();
                        // Entered pause state
                        state = AcceptorState.PAUSED;
                    }
                    if ((System.nanoTime() - pauseStart) > 1_000_000) {
                        // Paused for more than 1ms
                        try {
                            if ((System.nanoTime() - pauseStart) > 10_000_000) {
                                Thread.sleep(10);
                            } else {
                                Thread.sleep(1);
                            }
                        } catch (InterruptedException e) {
                            // Ignore
                        }
                    }
                }

                if (stopCalled) {
                    break;
                }
                state = AcceptorState.RUNNING;

                try {
                    //if we have reached max connections, wait
                    endpoint.countUpOrAwaitConnection();

                    // Endpoint might have been paused while waiting for latch
                    // If that is the case, don't accept new connections
                    if (endpoint.isPaused()) {
                        continue;
                    }

                    U socket = null;
                    try {
                        // 📌 Accept the next incoming connection from the server
                        // socket
                        socket = endpoint.serverSocketAccept();
                    } catch (Exception ioe) {
                        // We didn't get a socket
                        endpoint.countDownConnection();
                        if (endpoint.isRunning()) {
                            // Introduce delay if necessary
                            errorDelay = handleExceptionWithDelay(errorDelay);
                            // re-throw
                            throw ioe;
                        } else {
                            break;
                        }
                    }
                    // Successful accept, reset the error delay
                    errorDelay = 0;

                    // Configure the socket
                    if (!stopCalled && !endpoint.isPaused()) {
                        // 📌 setSocketOptions() will hand the socket off to
                        // an appropriate processor if successful
                        if (!endpoint.setSocketOptions(socket)) {
                            endpoint.closeSocket(socket);
                        }
                    } else {
                        endpoint.destroySocket(socket);
                    }
                } catch (Throwable t) {
                    ExceptionUtils.handleThrowable(t);
                    String msg = sm.getString("endpoint.accept.fail");
                    log.error(msg, t);
                }
            }
        } finally {
            stopLatch.countDown();
        }
        state = AcceptorState.ENDED;
    }

    // ...
}

// Accept the next incoming connection from the server
// socket
socket = endpoint.serverSocketAccept();

public class NioEndpoint extends AbstractJsseEndpoint<NioChannel, SocketChannel> {

    /**
     * Server socket "pointer".
     */
    private volatile ServerSocketChannel serverSock = null;

    // ...

    @Override
    protected SocketChannel serverSocketAccept() throws Exception {
        SocketChannel result = serverSock.accept();

        // Bug does not affect Windows platform and Unix Domain Socket. Skip the check.
        if (!JrePlatform.IS_WINDOWS && getUnixDomainSocketPath() == null) {
            SocketAddress currentRemoteAddress = result.getRemoteAddress();
            long currentNanoTime = System.nanoTime();
            if (currentRemoteAddress.equals(previousAcceptedSocketRemoteAddress) &&
                    currentNanoTime - previousAcceptedSocketNanoTime < 1000) {
                throw new IOException(sm.getString("endpoint.err.duplicateAccept"));
            }
            previousAcceptedSocketRemoteAddress = currentRemoteAddress;
            previousAcceptedSocketNanoTime = currentNanoTime;
        }

        return result;
    }
}

// setSocketOptions() will hand the socket off to
// an appropriate processor if successful
if (!endpoint.setSocketOptions(socket)) {
    ..,
}

/**
 * Process the specified connection.
 * @param socket The socket channel
 * @return <code>true</code> if the socket was correctly configured
 *  and processing may continue, <code>false</code> if the socket needs to be
 *  close immediately
 */
@Override
protected boolean setSocketOptions(SocketChannel socket) {
    NioSocketWrapper socketWrapper = null;
    try {
        // Allocate channel and wrapper
        NioChannel channel = null;
        if (nioChannels != null) {
            channel = nioChannels.pop();
        }
        if (channel == null) {
            SocketBufferHandler bufhandler = new SocketBufferHandler(
                    socketProperties.getAppReadBufSize(),
                    socketProperties.getAppWriteBufSize(),
                    socketProperties.getDirectBuffer());
            if (isSSLEnabled()) {
                channel = new SecureNioChannel(bufhandler, this);
            } else {
                // 📌 NioChannel을 사용
                channel = new NioChannel(bufhandler);
            }
        }

        // 📌 NioChannel을 감싸기 위한 NioSocketWrapper
        NioSocketWrapper newWrapper = new NioSocketWrapper(channel, this);
        channel.reset(socket, newWrapper);
        connections.put(socket, newWrapper);
        socketWrapper = newWrapper;

        // 📌 Non-Blocking 처리
        // Set socket properties
        // Disable blocking, polling will be used
        socket.configureBlocking(false);
        if (getUnixDomainSocketPath() == null) {
            socketProperties.setProperties(socket.socket());
        }

        socketWrapper.setReadTimeout(getConnectionTimeout());
        socketWrapper.setWriteTimeout(getConnectionTimeout());
        socketWrapper.setKeepAliveLeft(NioEndpoint.this.getMaxKeepAliveRequests());

        // 📌 Poller로 전달
        poller.register(socketWrapper);
        return true;
    } catch (Throwable t) {
        ExceptionUtils.handleThrowable(t);
        try {
            log.error(sm.getString("endpoint.socketOptionsError"), t);
        } catch (Throwable tt) {
            ExceptionUtils.handleThrowable(tt);
        }
        if (socketWrapper == null) {
            destroySocket(socket);
        }
    }
    // Tell to close the socket if needed
    return false;
}

package org.apache.tomcat.util.net;

public class NioEndpoint extends AbstractJsseEndpoint<NioChannel,SocketChannel> {
    private Poller poller = null;

    public class Poller implements Runnable {
        /* ... */
    }
}

// Acceptor.run()
poller.register(socketWrapper);

public class Poller implements Runnable {
    private Selector selector;
    private final SynchronizedQueue<PollerEvent> events = new SynchronizedQueue<>();

    /* ... */
}

// NioEndpoint
public static final int OP_REGISTER = 0x100; //register interest op

// Poller: NioEndpoint의 이너 클래스
public void register(final NioSocketWrapper socketWrapper) {
    socketWrapper.interestOps(SelectionKey.OP_READ);//this is what OP_REGISTER turns into.
    PollerEvent pollerEvent = createPollerEvent(socketWrapper, OP_REGISTER);
    addEvent(pollerEvent);
}

private void addEvent(PollerEvent event) {
    events.offer(event);
    if (wakeupCounter.incrementAndGet() == 0) {
        selector.wakeup();
    }
}

/**
 * The background thread that adds sockets to the Poller, checks the
 * poller for triggered events and hands the associated socket off to an
 * appropriate processor as events occur.
 */
@Override
public void run() {
    // Loop until destroy() is called
    while (true) {

        boolean hasEvents = false;

        try {
            if (!close) {
                // 📌 처리해야할 이벤트가 있는지 확인 & Selector에 등록
                hasEvents = events();
                if (wakeupCounter.getAndSet(-1) > 0) {
                    // If we are here, means we have other stuff to do
                    // Do a non blocking select
                    // 📌 처리해야할 요청이 있어 wakeUpCount가 0보다 큰 경우 Non-Blocking 모드로 처리 가능한 채널이 있는지 확인한다.
                    keyCount = selector.selectNow();
                } else {
                    // 📌 우선은 Poller 쓰레드를 대기 시킨 후, Selector를 통해 I/O 작업이 완료 이벤트가 발생한 경우 깨어남

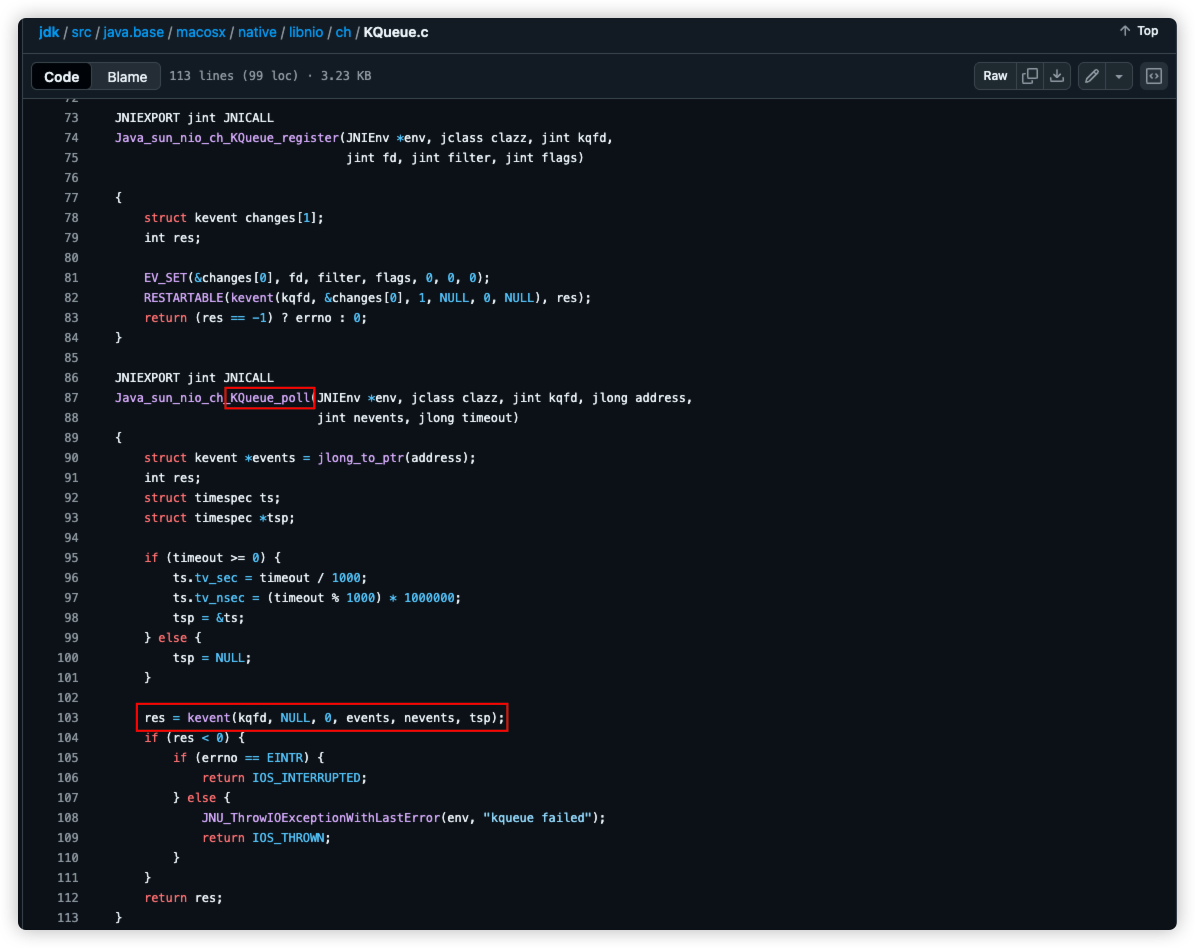

                    keyCount = selector.select(selectorTimeout);
                }
                wakeupCounter.set(0);
            }
            if (close) {
                events();
                timeout(0, false);
                try {
                    selector.close();
                } catch (IOException ioe) {
                    log.error(sm.getString("endpoint.nio.selectorCloseFail"), ioe);
                }
                break;
            }
            // Either we timed out or we woke up, process events first
            if (keyCount == 0) {
                hasEvents = (hasEvents | events());
            }
        } catch (Throwable x) {
            ExceptionUtils.handleThrowable(x);
            log.error(sm.getString("endpoint.nio.selectorLoopError"), x);
            continue;
        }

        // 📌 I/O 작업 준비가 완료된 채널의 SelectionKey들을 순회

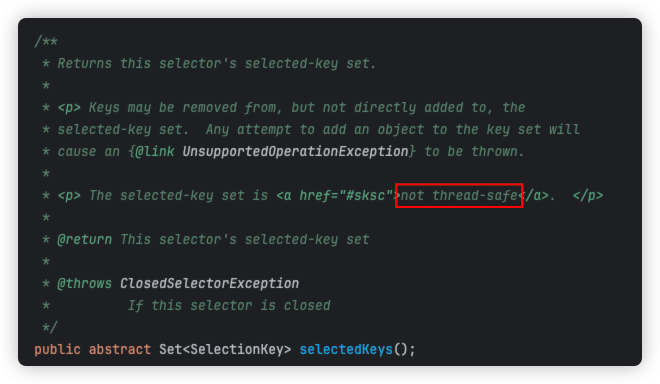

        Iterator<SelectionKey> iterator =
            keyCount > 0 ? selector.selectedKeys().iterator() : null;
        // Walk through the collection of ready keys and dispatch
        // any active event.
        while (iterator != null && iterator.hasNext()) {
            SelectionKey sk = iterator.next();
            iterator.remove();
            NioSocketWrapper socketWrapper = (NioSocketWrapper) sk.attachment();
            // Attachment may be null if another thread has called
            // cancelledKey()
            if (socketWrapper != null) {
                // 📌 요청 처리
                processKey(sk, socketWrapper);
            }
        }

        // Process timeouts
        timeout(keyCount,hasEvents);
    }

    getStopLatch().countDown();
}

/**
 * Processes events in the event queue of the Poller.
 *
 * @return <code>true</code> if some events were processed,
 *   <code>false</code> if queue was empty
 */
public boolean events() {
    boolean result = false;

    PollerEvent pe = null;
    for (int i = 0, size = events.size(); i < size && (pe = events.poll()) != null; i++ ) {
        result = true;
        NioSocketWrapper socketWrapper = pe.getSocketWrapper();
        SocketChannel sc = socketWrapper.getSocket().getIOChannel();
        int interestOps = pe.getInterestOps();
        if (sc == null) {
            log.warn(sm.getString("endpoint.nio.nullSocketChannel"));
            socketWrapper.close();
        } else if (interestOps == OP_REGISTER) { // 📌 클라이언트와 채널이 처음 연결된 경우
            try {
                // 📌 OP_READ 이벤트를 감지하도록 Selector에 등록
                sc.register(getSelector(), SelectionKey.OP_READ, socketWrapper);
            } catch (Exception x) {
                log.error(sm.getString("endpoint.nio.registerFail"), x);
            }
        } else {
            final SelectionKey key = sc.keyFor(getSelector());
            if (key == null) {
                // The key was cancelled (e.g. due to socket closure)
                // and removed from the selector while it was being
                // processed. Count down the connections at this point
                // since it won't have been counted down when the socket
                // closed.
                socketWrapper.close();
            } else {
                final NioSocketWrapper attachment = (NioSocketWrapper) key.attachment();
                if (attachment != null) {
                    // We are registering the key to start with, reset the fairness counter.
                    try {
                        int ops = key.interestOps() | interestOps;
                        attachment.interestOps(ops);
                        key.interestOps(ops);
                    } catch (CancelledKeyException ckx) {
                        socketWrapper.close();
                    }
                } else {
                    socketWrapper.close();
                }
            }
        }
        if (running && eventCache != null) {
            pe.reset();
            eventCache.push(pe);
        }
    }

    return result;
}

else if (interestOps == OP_REGISTER) { // 📌 클라이언트와 채널이 처음 연결된 경우
    try {
        // 📌 OP_READ 이벤트를 감지하도록 Selector에 등록
        sc.register(getSelector(), SelectionKey.OP_READ, socketWrapper);
    } catch (Exception x) {
        log.error(sm.getString("endpoint.nio.registerFail"), x);
    }
} // ...

// AbstractSelectableChannel
public final SelectionKey register(Selector sel, int ops, Object att) throws ClosedChannelException
{
    if ((ops & ~validOps()) != 0)
        throw new IllegalArgumentException();
    if (!isOpen())
        throw new ClosedChannelException();
    synchronized (regLock) {
        if (isBlocking())
            throw new IllegalBlockingModeException();
        synchronized (keyLock) {
            // re-check if channel has been closed
            if (!isOpen())
                throw new ClosedChannelException();
            SelectionKey k = findKey(sel);
            if (k != null) {
                k.attach(att);
                k.interestOps(ops);
            } else {
                // 📌 New registration
                k = ((AbstractSelector)sel).register(this, ops, att);
                addKey(k);
            }
            return k;
        }
    }
}

// Poller
/**
 * The background thread that adds sockets to the Poller, checks the
 * poller for triggered events and hands the associated socket off to an
 * appropriate processor as events occur.
 */
@Override
public void run() {
    // Loop until destroy() is called
    while (true) {

        boolean hasEvents = false;

        try {
            if (!close) {
                // 📌 처리해야할 이벤트가 있는지 확인 & Selector에 등록
                hasEvents = events();
                if (wakeupCounter.getAndSet(-1) > 0) {
                    // If we are here, means we have other stuff to do
                    // Do a non blocking select
                    // 📌 처리해야할 요청이 있어 wakeUpCount가 0보다 큰 경우 Non-Blocking 모드로 처리 가능한 채널이 있는지 확인한다.
                    keyCount = selector.selectNow();
                } else {
                    // 📌 우선은 Poller 쓰레드를 대기 시킨 후, Selector를 통해 I/O 작업이 완료 이벤트가 발생한 경우 깨어남
                    keyCount = selector.select(selectorTimeout);
                }
                wakeupCounter.set(0);
            }
            if (close) {
                events();
                timeout(0, false);
                try {
                    selector.close();
                } catch (IOException ioe) {
                    log.error(sm.getString("endpoint.nio.selectorCloseFail"), ioe);
                }
                break;
            }
            // Either we timed out or we woke up, process events first
            if (keyCount == 0) {
                hasEvents = (hasEvents | events());
            }
        } catch (Throwable x) {
            ExceptionUtils.handleThrowable(x);
            log.error(sm.getString("endpoint.nio.selectorLoopError"), x);
            continue;
        }

        // 📌 I/O 작업 준비가 완료된 채널의 SelectionKey들을 순회
        Iterator<SelectionKey> iterator =
            keyCount > 0 ? selector.selectedKeys().iterator() : null;
        // Walk through the collection of ready keys and dispatch
        // any active event.
        while (iterator != null && iterator.hasNext()) {
            SelectionKey sk = iterator.next();
            iterator.remove();
            NioSocketWrapper socketWrapper = (NioSocketWrapper) sk.attachment();
            // Attachment may be null if another thread has called
            // cancelledKey()
            if (socketWrapper != null) {
                // 📌 요청 처리
                processKey(sk, socketWrapper);
            }
        }

        // Process timeouts
        timeout(keyCount,hasEvents);
    }

    getStopLatch().countDown();
}
